GORE® Ethernet Cables for Aerospace & Defense
To assist aircraft and military vehicle maintainers in successfully terminating our 4-pair Ethernet cables for Cat6A protocol with leading high-speed connector systems, we’ve developed instructions based on our best practices.
By following these detailed steps, you can maximize your assembly’s performance when connected to avionics and vectronics. You can also view electrical performance results after we tested our cables terminated with these connectors systems.
Connector System | Electrical Performance | Termination |
---|---|---|
Amphenol® Oval Contact System (OCS 13-53) | Data (24 AWG) | Instructions (24 AWG) |
Data (26 AWG) | Instructions (26 AWG) | |
Amphenol® µ-Com | Data | Instructions |
Bel Stewart SS-39200 Series | Data | Instructions |

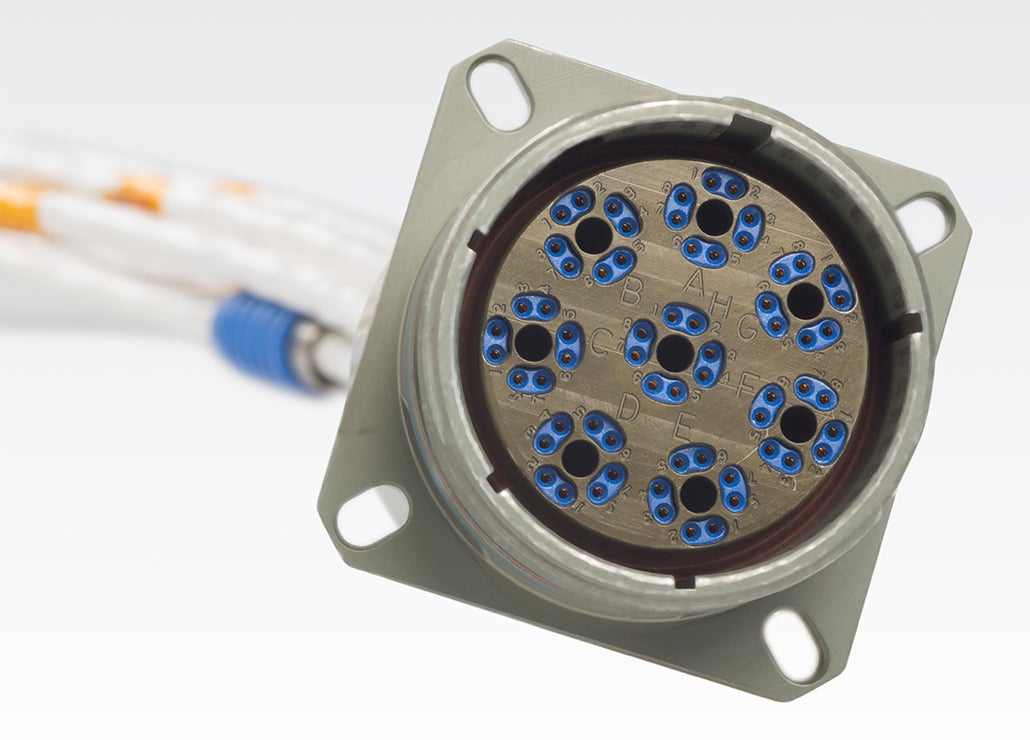

Carlisle Octax® | Data | Instructions |
Carlisle Octax® M38999 (Size 11) | Data | Instructions |
Glenair® El Ochito® | Data | Instructions |
HARTING RJ Industrial® 10G RJ45 | Data | Instructions |
ITT Cannon OctoGig™ | N/A | Instructions |
LEMO® 2B Series | Data | Instructions |
MIL-DTL-38999 General Purpose | N/A | Instructions |
Omnetics Micro 360® Cat6a | Data | N/A |
TE Connectivity® CeeLok FAS-X® | Data | Instructions |
TE Connectivity® CeeLok FAS-T® | Data | Instructions |
View the complete list of connectors compatible with our Ethernet 4-pair version, including options in the table and more.
